Electric Wall Slotting Machine Circular Saw Concrete Cutter Brick Slot Cutter Groove Cutting Wall Chaser 4.76 IN 220V 4000W
Specifications
Style: Modern
Color: Green, Black, Silver
Material: Plastic, Aluminum, Copper, Iron
Surface Treatment: Spraying Painting
Plug Standard: EU Standard
Mount Type: Handheld
Assembly Required: Yes
Power Source: Corded Electric
Voltage: 220V, 50HZ
Load Power: 4000W
No-load Speed: 6500RPM
Grooving Angle: 360°
Saw Blade Diameter: 12.1cm/ 4.76 in

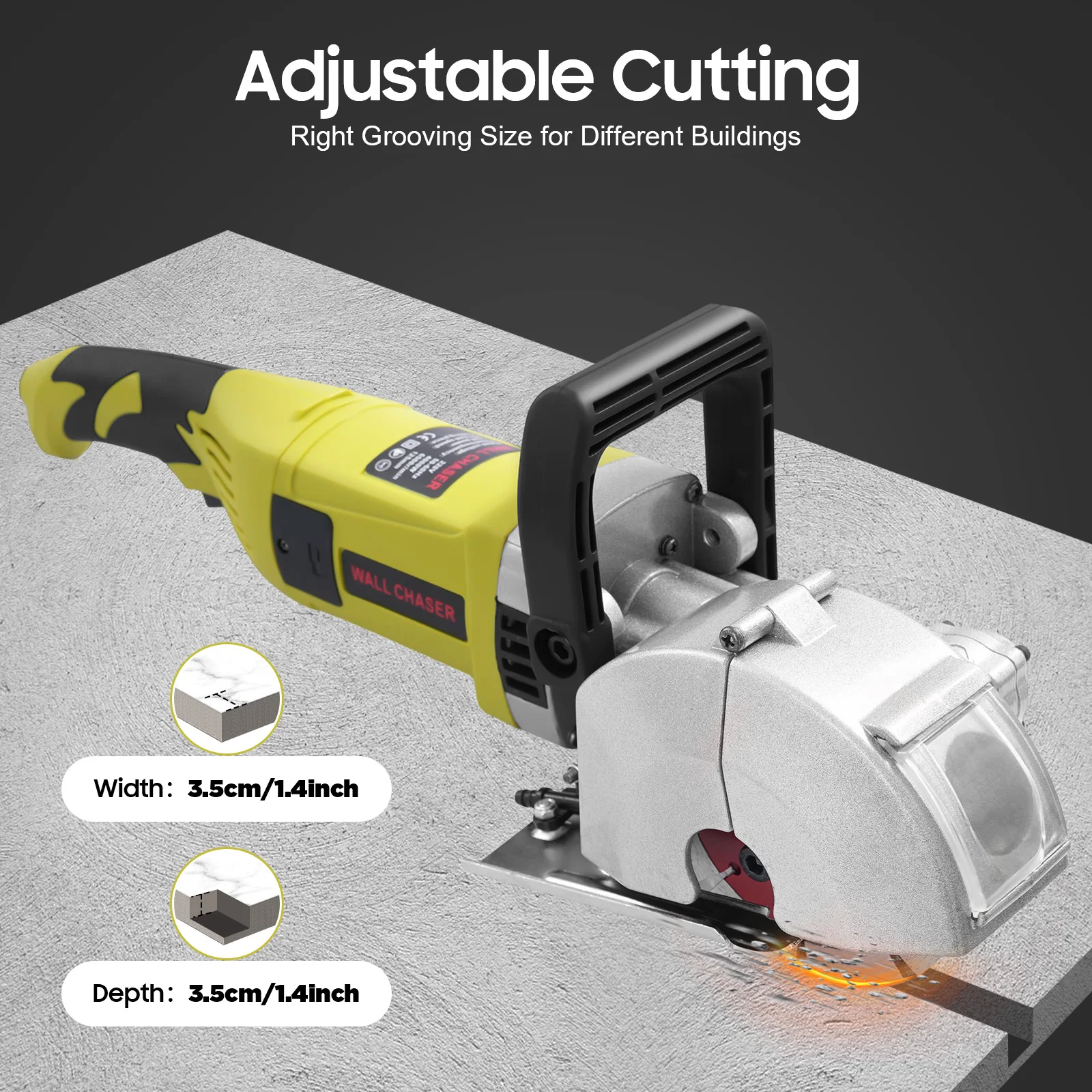

Adjustable Grooving Depth: 0-3.7cm/ 0-1.45 in
Adjustable Grooving Width: 0-3.3cm/0-1.3 in
Length of Water Pipe: 4m/ 13.12 ft
Power Cord Length: 3 m/ 9.84 ft, 1.5m/4.92 ft (Water Pump)

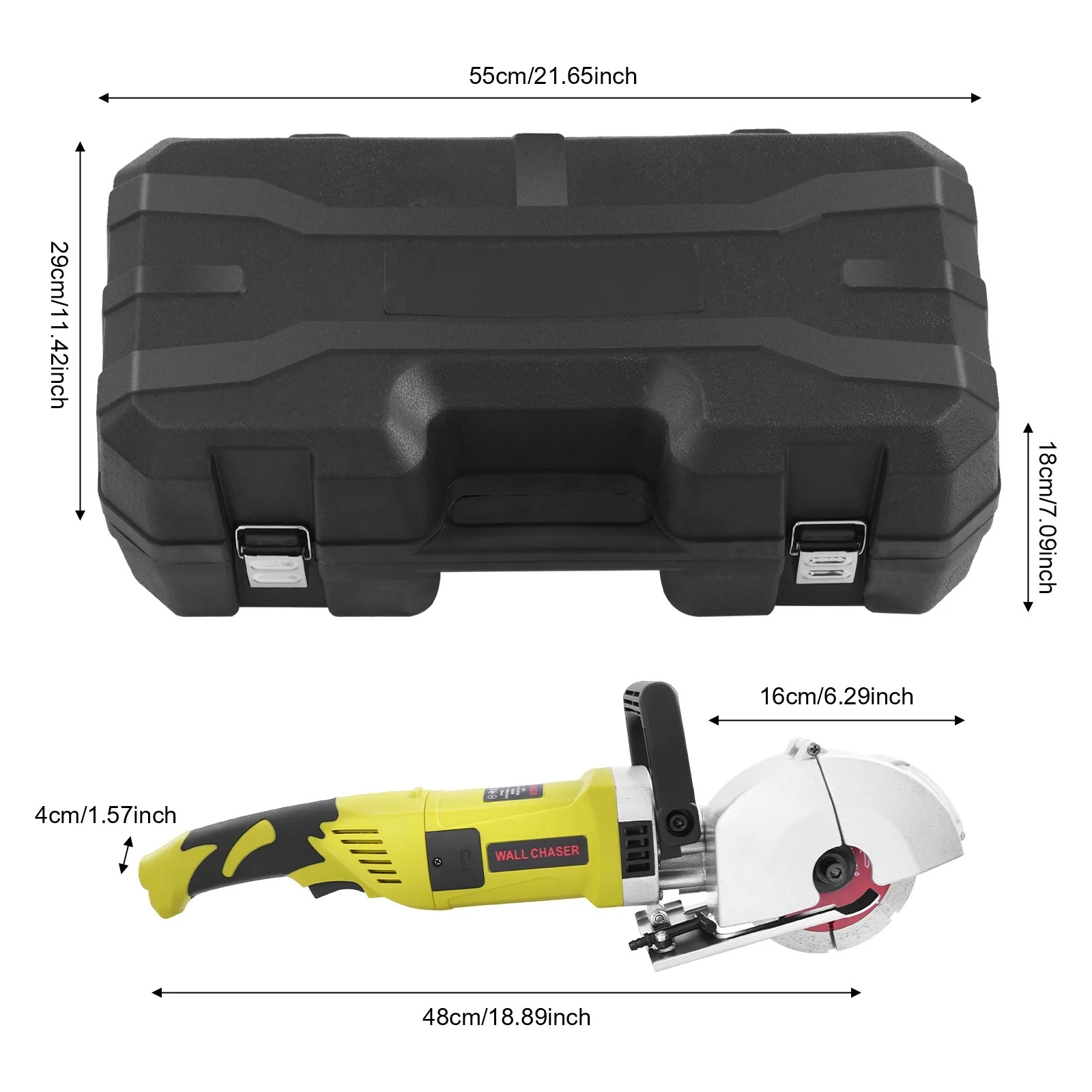

Product Length: 48cm/18.89 in
Handle Width: 4cm/ 1.57 in
Head Shell Length: 16cm/ 6.3 in
Toolbox Size: 55*18*29cm/21.65*7.08*11.42in
Water Pump Max. Flow Rate: 4L/0.88gal/ min
Water Pump Rated Power: 30W
Water Pump DC Input: 12V 2A
Water Pump Max. Head: 10m/32.81 ft
Description
In the battlefield of renovation, where precision and efficiency are pursued, every detail reveals the essence of craftsmanship. This grooving machine of ours opens a new avenue of efficient and precise grooving. It adopts a high-performance all-copper motor with surging power, which can easily cope with both brick walls and concrete. You can control the depth and width of the groove as you like to meet your needs. You are not only choosing a tool, but also a reliable partner to improve your work efficiency and quality.
Key Features
Sturdy and Durable: The product is made of high-quality plastic, aluminum, copper, and iron, using spraying painting technology, with high strength, and wear resistance, ensuring your long-term use.

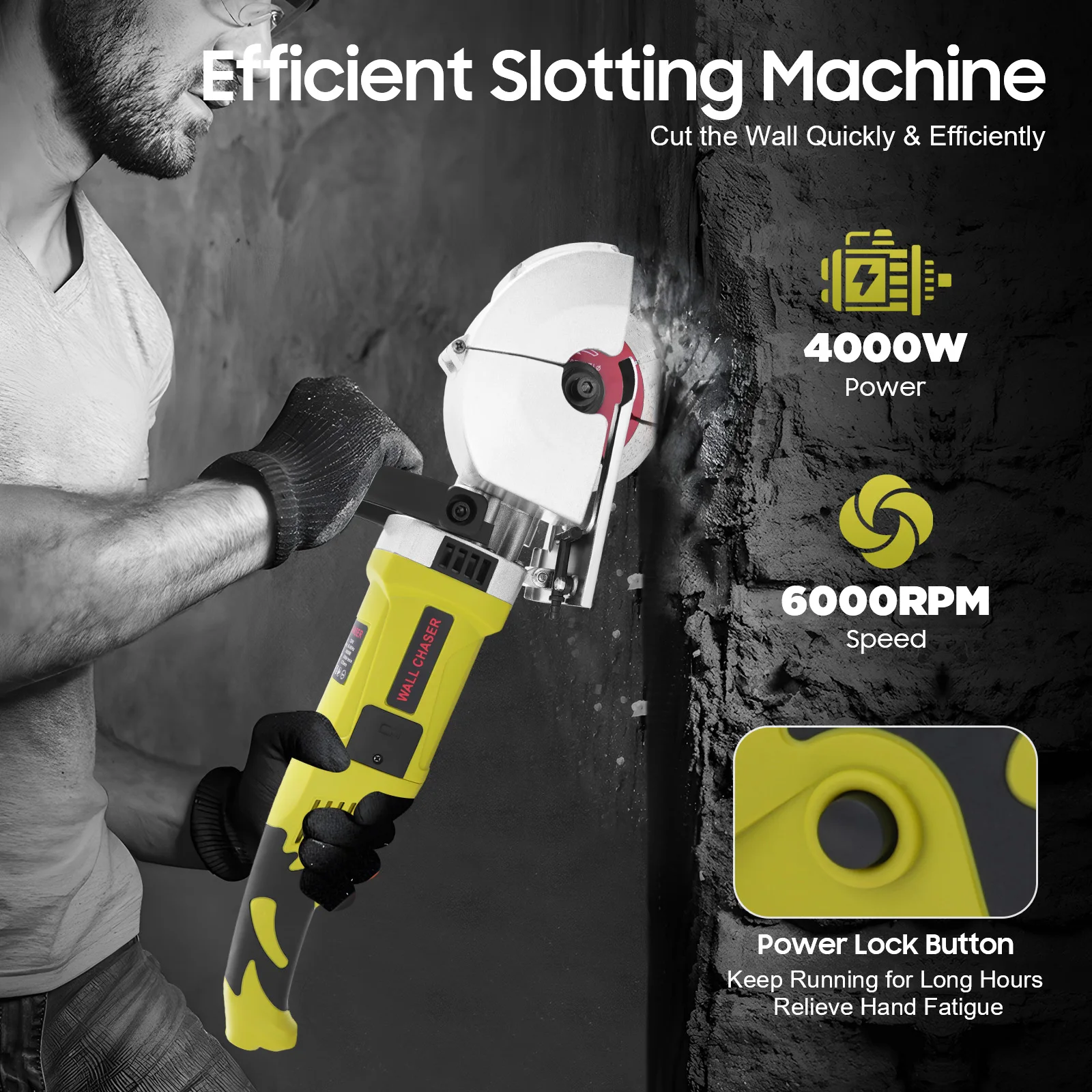

High Efficiency: With an all-copper motor with 4000W load power, 6500RPM no-load speed, and a sharp diamond blade, it allows you to complete grooving jobs easily and efficiently.

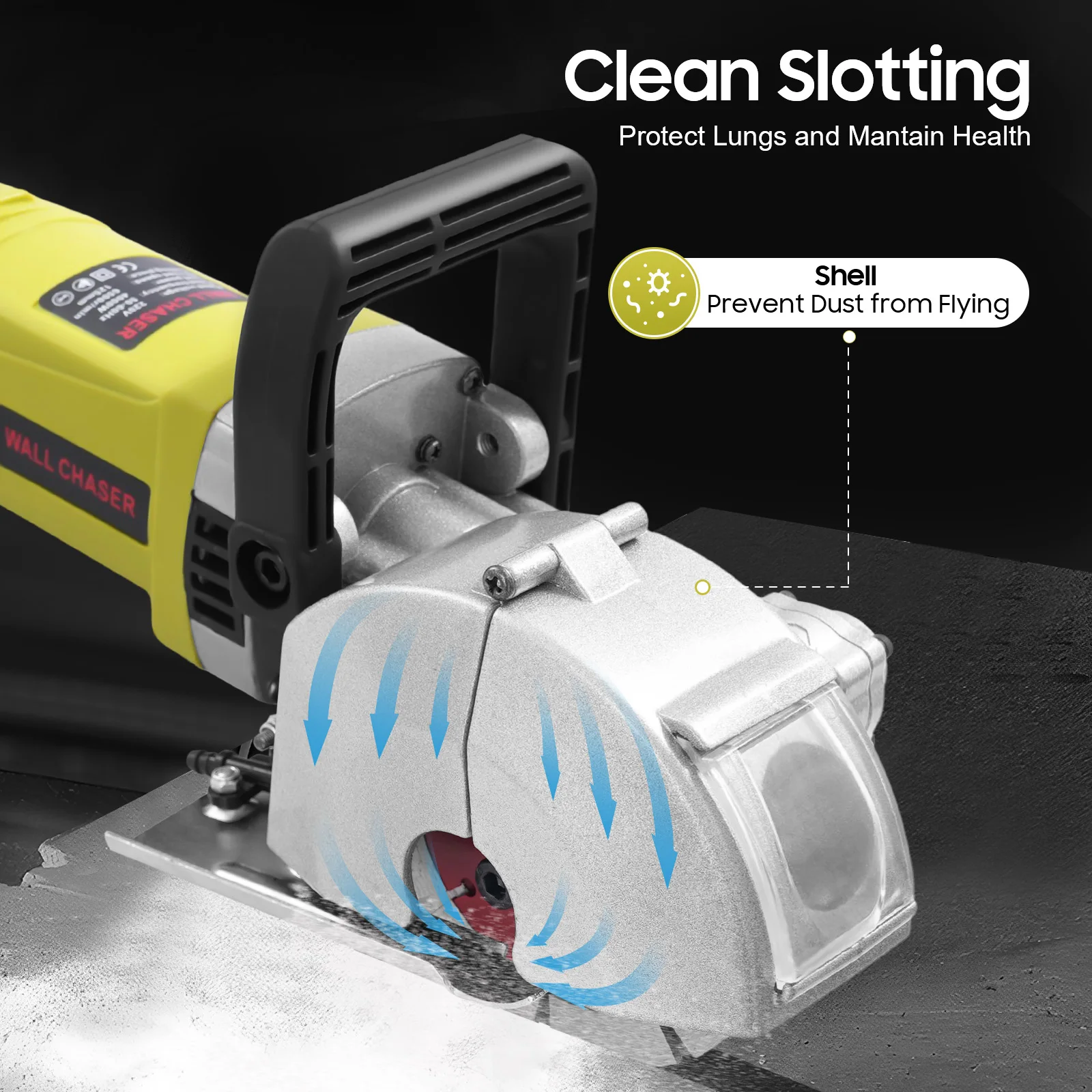

Dust-free Grooving: This product can be connected to a pump and a vacuum cleaner (not included) and both can be used at the same time to reduce dust during grooving, reduce environmental pollution, and safeguard the health of the operator. The front guard also helps to reduce dust splashing.
Application
This product can be applied to concrete grooving, floor grooving, red brick grooving, cutting off rebar, marble grooving, and so on. It is widely used on construction sites, home decoration, road renovation, and cement factories.
How to Install Saw Blades
1. Secure the spindle with a spanner and tighten it by turning the hexagonal spanner counterclockwise.
2. Put in the platen.
3. Put in the saw blade, then the platen, and so on.
4. Put the saw blade in place and cover the platen screws.
5. Tighten the screws with a spanner.
6. Saw blade installation is complete.

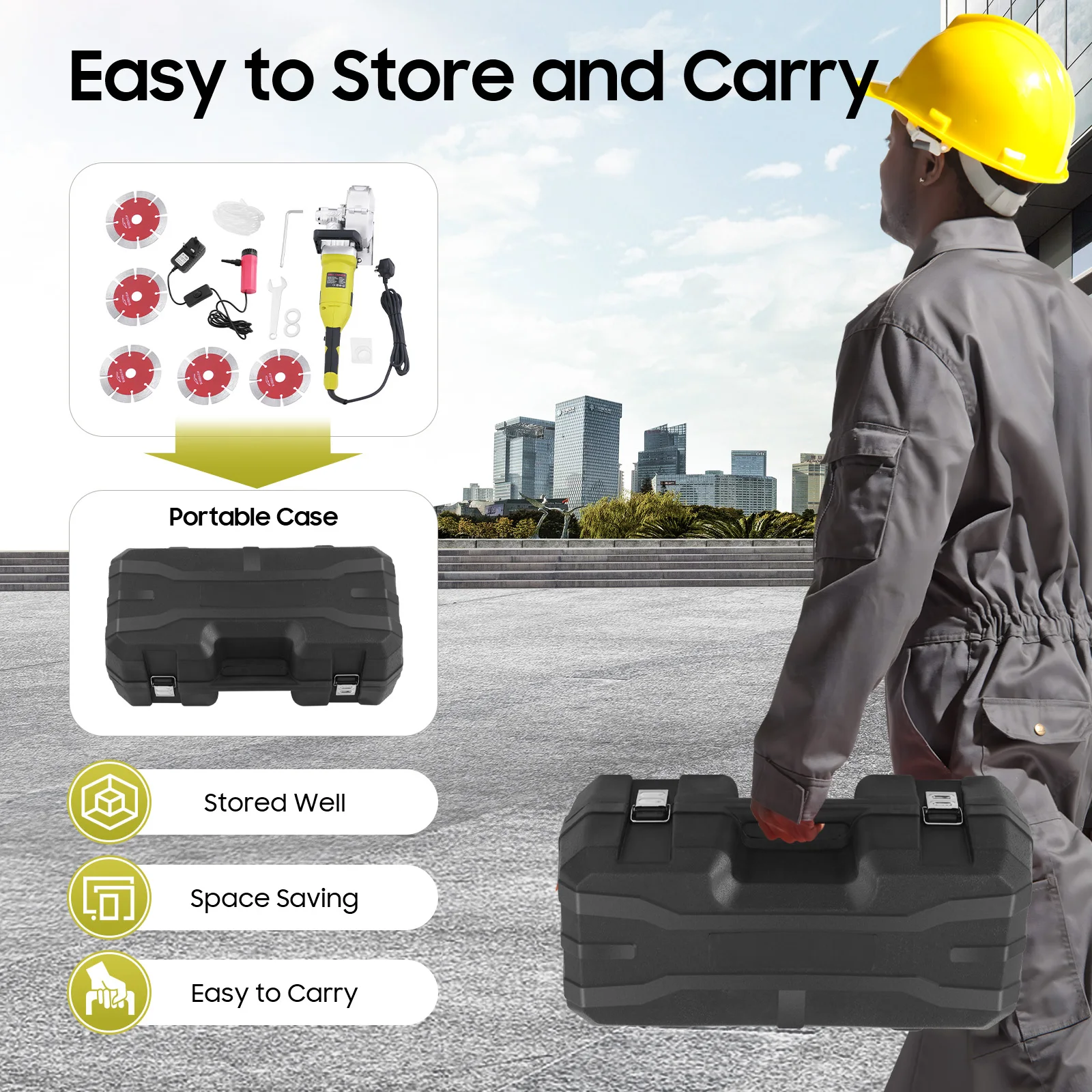

Package Included
1* Grooving Machine
1* Toolbox

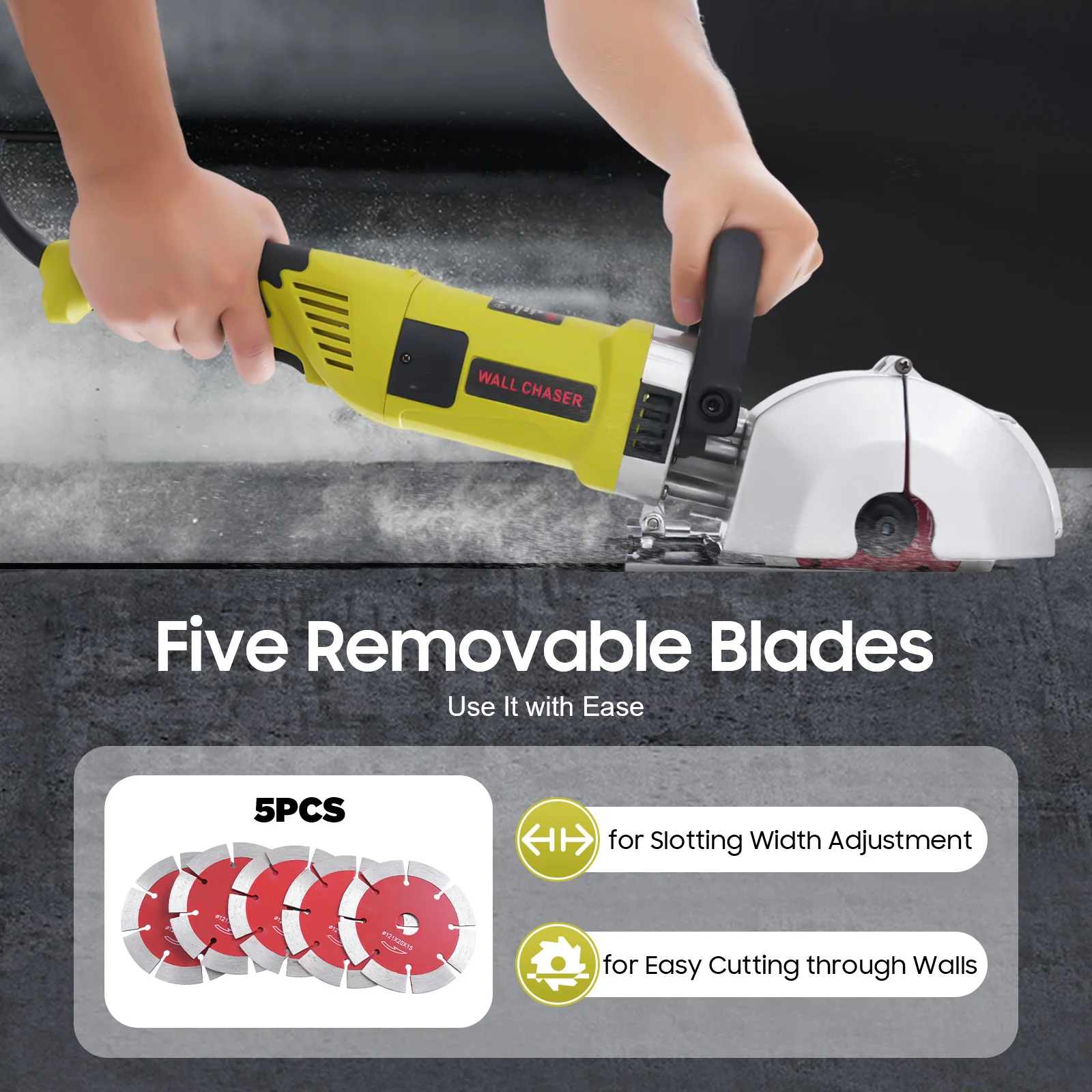

5* Saw Blades
1* Water Pump
1* Water Pipe
1* English Manual
Other Accessories for Assembly
Notes
1. Please read the instruction manual carefully before use and pay attention to the safety matters therein.
2. Please note that when using a vacuum cleaner (not included), the front protective cover should be fully pressed against the wall/floor when the base plate is set to the bottom position.
3. Please note that in order to prolong the service life, please check the wear of carbon brushes regularly. When the spark is large, the carbon brushes need to be replaced promptly.
4. Please note that when cleaning the cutting head, water should be avoided from entering the machine body through the vent, which may affect the service life of the machine.
5. Please note that when the rotating speed of the machine body slows down during use, do not use brute force to operate it hard to avoid overloading and burning the machine, first lift the machine and idle it for 5-30 seconds.
6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
